Digital Signage System

These days, public information needs to be delivered quickly and accurately

NovoDS Solution offers a very affordable, network-based digital signage solution which is ideal for creating dynamic visual displays for corporate or public spaces. Digital signage content can incorporate text, photos, audio, video, and web content in fully customizable configurations for a variety of environments. Easy to use, NovoDS Solution offers the convenience of updating content over the network or using a microSD card.

Flexible, easy-to-create layouts

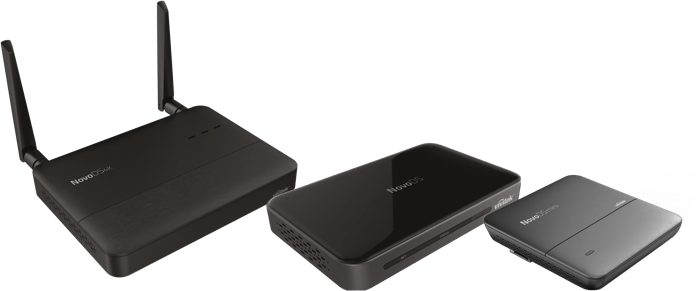

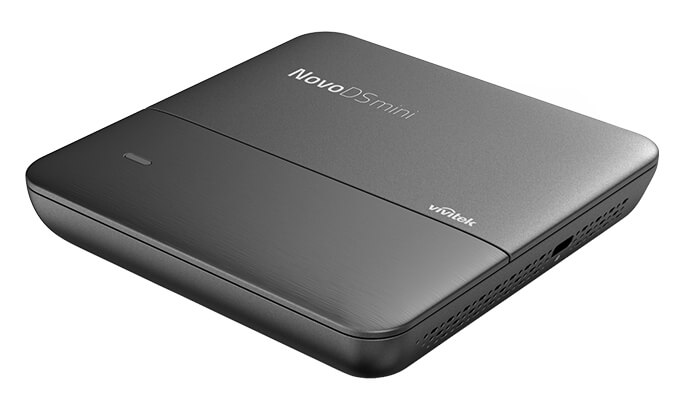

Thanks to drag-and-drop template customization and highly intuitive playlist editing, it’s so easy to use that even non-technical staff members will feel at ease. The list of applications is endless and the solution is easy with NovoDS4K, NovoDS and NovoDSmini.

Open software API

To accommodate custom applications requiring machine-to-machine communication between IT systems, AV systems, and more, NovoDS provides an Open Software API. By granting developers an easily accessible means of transmitting requests to their NovoDS device, organizations can greatly enhance the possibilities of their digital signage deployment.

NovoDS Cloud

For remote device and content management over the internet. This easy-to-use, role-based cloud service enables administrators, publishers, and designers to manage playlists, set up devices, create users accounts, and more from anywhere with an internet connection. NovoDS can be deployed as a public cloud solution or on their own server.

For NovoDS customers interested in NovoDS Cloud, they can visit www.NovoDS.com and register for a free trial.

The easy and affordable digital signage NovoDS Solution lets you reach your audience quickly and effortlessly.

Features include:

Importing media files
from remote storage

Customizable templates

Intelligent centralized
playlist management

Network integration

Flexible and
easy-to-use software

NovoDS Studio is completely free software which allows users to arrange their playlists however they like.
Support for a wide range of dynamic content, from text, audio, photos and videos to webpages, Google Calendar, Twitter, RSS, weather, IP streaming, etc.
User-friendly drag-and-drop interface for signage content creation — programming skills not required
Built-in playlist templates for easy content creation, or build your own from scratch in seconds
Synchronize media content automatically from remote storage (Dropbox, FTP, etc.)
Efficient HTML5 rendering to support rich interactive content

Powerful device
management

Content update over wired and wireless networks
Manage and monitor device playback status from a central computer
Compatible with Windows® and macOS® operating systems
Playlist scheduling on daily, weekly, and monthly
Plug-and-play for easy setup and configuration, including device auto-discovery
Integrated RS232 control interface for users to control external equipment
Kensington® security slot to prevent theft or movement of the device
Low TCO (Total Cost of Ownership) – no software license fee, and free software upgrades

Model

DS300

DS200

DS100

Display
Resolutions

3840 x 2160 (16:9, 4K-UltraHD at 30 fps);
1920 x 1080 (16:9, 1080p at 60 fps);
1280 x 720 (16:9, 720p at 60 fps)

1920 x 1080 (16:9, 1080p at 60 fps);
1280 x 720 (16:9, 720p at 60 fps)

Output Orientation

Portrait, Landscape

Media Formats
Supported

Images: JPEG, PNG, BMP
Video: MP2, MP4, 3GP, AVI ,MOV ,WMV
Audio: MP3, WMA, AAC

NovoDS Studio Software
Operating System Requirement

Windows 7 and above,
Mac 10.7 and above

Input / Output Ports

HDMI Output;
HDMI Input;
Audio Output Jack;
Audio Input Jack;
USB 2.0 Type A (x 2);
microSD Card Slot;
RJ45 with PoE;
RS232 Jack;
DC Power Jack

HDMI Output;
USB 2.0 Type A;
microSD Card Slot;
RJ45;
DC Power Jack

HDMI Output;
Audio Output Jack;
USB 2.0 Type A;
microSD Card Slot;
RJ45;
DC Power Jack

Storage

Internal: 32 GB (29 GB available for users) External: microSD Card Slot (Up to 32GB), USB Flash Drive

Internal: 8 GB (5.1 GB available for users) External: microSD Card Slot (Up to 32GB), USB Flash Drive

CPU

ARM Cortex A9 Quad-Core at 1.6 GHz

Network Connectivity

WiFi: 802.11 AC (2.4 GHz & 5 GHz)
Ethernet: 1 Gbps

WiFi: 802.11 AC (2.4 GHz & 5 GHz)
Ethernet: 10/100Mbps

Ethernet: 10/100Mbps

Security

Kensington® Security Slot

Power Supply

100 - 240V AC, 50/60 Hz,
DC output: 5V@2A.
Power over Ethernet (IEEE 802.3af)

100 - 240V AC, 50/60 Hz,
DC output: 5V@2A.

Power Consumption

< 10W

Weight

253 g

128 g

178 g

Dimensions (L x W x H)

152 x 113 x 22.5 mm

120 x 75 x 16 mm

100 x 100 x 20 mm

Accessories

AC-DC Power Adapter;
HDMI Cable;
Power Cable;
Mounting Bracket;
Document Set

NovoDS Introduction	NovoDS At a Glance	How to create a playlist using NovoDS software
NovoDS Device management	Device installation and setup	Remote media
One playlist with multiple pages	Device Settings	Page & Zone Import
Scheduler	Overlay Message	Calendar
Synchronized Playback
