Novo Touch



Transform your conference room into a true collaborative space

NovoTouch is a powerful team collaboration solution that’s ideal for conference rooms, meeting areas and corporate lobbies. Equipped with Vivitek’s NovoPro, a BYOD collaboration system, NovoTouch offers an advanced approach to group work in an all-in-one display. Featuring digital annotation and wireless capabilities, NovoTouch seamlessly connects users to one display, using technology that allows ideas to flow naturally.

The easy and affordable collaboration solution, NovoTouch creates an interactive environment for a fluid exchange of ideas. Features include:

ENGAGE

Users can manipulate content with up to 20-points of touch, common gesture interactivity and on-screen annotation

INSPIRE

Think differently during group work with side-byside collaboration on one large display

TEAMWORK

Up to 64 devices can connect, and four members can share content on the display, for a fluid exchange of ideas

CREATE

Interact with content directly on the display to take notes or emphasize things in real time

COLLABORATE

Effortlessly integrate content into discussions to share ideas, increase productivity and drive innovation

SPECIFICATIONS65"75"86"98"
Model Name NovoTouch LK6530i NovoTouch LK7530i NovoTouch LK8630i NovoTouch LK9810i
Display Technology Backlit LED (IPS Panel) Backlit LED (IPS Panel) Backlit LED (IPS Panel) Backlit LED (IPS Panel)
Panel Size; Aspect Ratio 65”, 16:9 75”, 16:9 86”, 16:9 98”, 16:9
Brightness 350cd/m2 330cd/m2
330cd/m2
440cd/m2
Contrast Ratio (Typical) 1,200:1 1,200:1 1,200:1 1,300:1
Native Resolution 4K Ultra-HD (3840 x 2160)
Viewing Angle (Horiz/Vert) 178°/178°
Refresh Rate (Hz) 60Hz 60Hz 60Hz 120Hz
Display Color (Bit) 1.06 billion (10-bit)
Orientation Landscape
Touch Technology Infrared Touch
Touch Points 10 Writing, 20 Touch 10 Writing, 20 Touch 10 Writing, 20 Touch 5 Writing, 10 Touch
Surface Protection 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Minimum Touch Object Single-Touch ≥Φ6mm and Multi-Touch ≥Φ8mm
Touch Tools Finger, Stylus, Glove, Opaque Objects
Gestures Supported Yes
System Version AndroidTM v6.0 AndroidTM v6.0 AndroidTM v6.0 AndroidTM 4.2.1
CPU RK3399, Dual-Core ARM® Cortex® A72 and Quad Core ARM® Cortex® A53 ARM® Cortex® A9 Dual Core CPU
GPU Mali™ T860 Mali™ T860 Mali™ T860 Quad Core GPU
RAM 4GB DDR3 4GB DDR3 4GB DDR3 1.5G RAM
Internal Storage 16GB 16GB 16GB 8GB
OS Compatibility Windows® (Windows 7 and above: Driver Free), Mac® (10.10 and above), AndroidTM (2.2/2.3/4.0/4.1/4.2 (Kernel v3.5 and above - Driver Free), Chrome (v39 and above), Linux (Kernal v3.5 and above)
I/O Ports HDMI v2 (x1), HDMI v1.4 (x2), DisplayPort (x1), VGA-In (x1), Audio-In (3.5mm) (x1), AV-In (x1), HDMI-Out (1080P) (x1), Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1), LAN (RJ45) (x1), RS232 (x1), USB Type A 2.0 (x4), USB Type A 3.0 (x2), USB Type B (x2) HDMI v1.4 (x1), HDMI v1.3 (x3), AV-In (x1), VGA-In (x3), Audio-In (x3), VGA-Out (x1), Audio-Out (3.5mm (x1)), Coaxial-Out (RCA) (x1), LAN (RJ45) (x1), RS232 (x1), USB Type A 2.0 (x4), USB 3.0 (x1), USB Type B (x2)
Internal Speakers 12W (x2) (Stereo) 12W (x2) (Stereo) 12W (x2) (Stereo) 10W (x2) (Stereo)
Power Supply (Internal) AC 100-240V, 50/60Hz
Dimensions 1,521 x 915 x 98 mm 1,762 x 1,034 x 100 mm 1,988 x 1,178 x 99.6 mm 2,257 x 1,335 x 118 mm
Weight 46 kg 60 kg 107 kg 150 kg
Accessories (Standard) AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Remote Control, Wall Mount Kit, Documentation Kit

Replacement Lamp

LB05P D08A Lamp Photo 1 D751ST D755WT D755WTi D755WTIR DH758UST

Power: 230 W
Part number: 5811118004-SVV

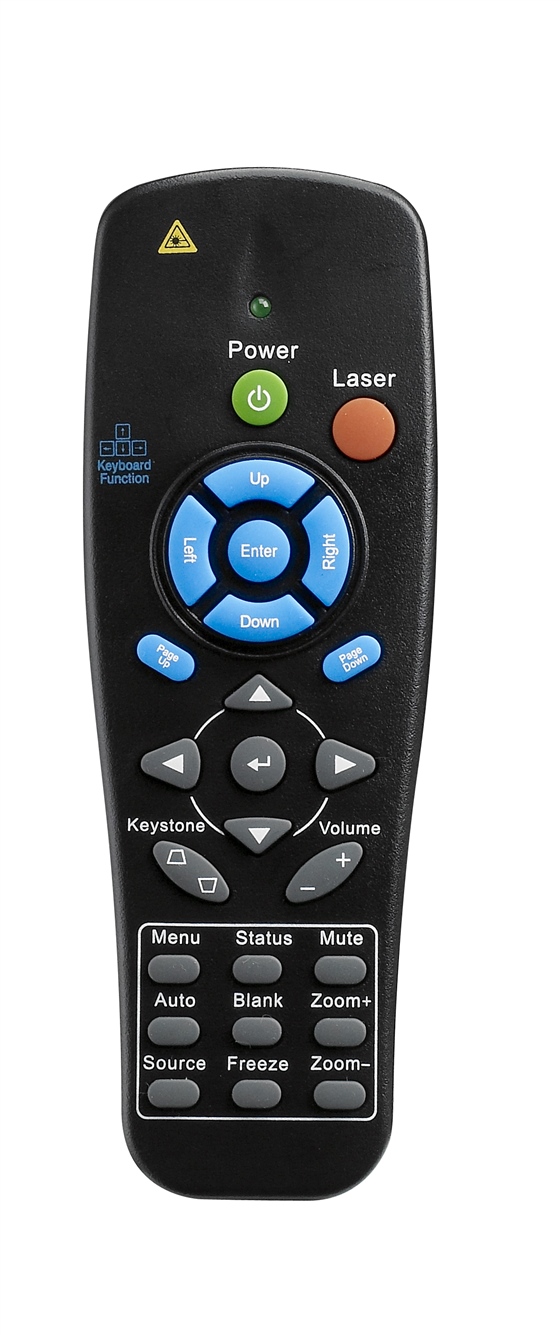

IR Remote Control

VivitekD7 D8 D9 D5000 Series

Description: Full functions 27 Keys
Part number: 5041818400

A new way to engage and interact with big data visualization

The interactive Flat panels are pre-configured with Vivitek’s NovoConnect Solution, which brings wireless, cable-free and hassle-free presenting to improve meeting efficiency and productivity by driving increased collaboration.

With its Bring Your Own Device concept, the new range of iFPD screens offer users complete wireless connectivity to a variety of devices.

With the iFPD screens, users can engage employees and motivate team collaboration via large displays and interactive HD technology.

  •  Ultra HD 4K (3,840 x 2,160) resolution for outstanding  details and stunning visuals

  • Complete range of display sizes including 98”, 86”, 75” and 65”
  • LED backlit technology for brighter picture, longer life and lower energy cost
  • High contrast ratio and fast response time delivering crisp, readable content
  • An anti-glare surface improves the screen visibility in high ambient light environments and a 4mm thick toughened glass provides added protection against screen damage

NovoConnect Solution

The NovoTouch equipped with NovoConnect Solution makes collaboration from any participant readily accessible.

  • Connect up to 64 users and display up to four screens, simultaneously, on a large format display
  • Built-in whiteboard and touch panel capabilities
  • On-screen annotation, mark-up and wireless distribution
  • Native screen mirroring via AirPlay and Google Cast
  • Dual network support for separate or parallel wired and wireless connections for ultra secure networks
  • Optional Accessory: LauncherPlus, a USB device that provides tactile operation without installing the software
  • Reduces clutter and promotes a cable-free workplace with Wi-Fi connection and wireless file sharing
