Vivitek NovoConnect Solution

A cost-effective and hassle-free solution for easier collaboration and engaging meetings. Choose the right NovoConnect Solution for your space and your needs.

Simple & Easy to Connect

Cable-free presenting eliminates the hassle and lets you get going in seconds.
Cross-platform screen mirroring lets everyone share from any device.
Connect quickly using QR code on mobile devices with NovoPresenter App.
Optional USB LauncherPlus for direct connectivity with zero impact on your network.

Discussion & Collaboration

Enhance your meeting by sharing up to 4 screens simultaneously, while 64 participants can be connected to switch instantly.
Comment and collaborate in real time with digital annotation and highlighting.
Wirelessly share files, meeting minutes and snapshots with all participants.
Moderation functions keep you in control of the agenda.

Productivity & Privacy

Start your meeting and customize the home screen with your logo, agenda or connection instructions.
With AES encryption and dual network management, security comes first.
Privacy and security are ensured thanks to PIN-protected guest access.
Dual-band WiFi and 2T2R connectivity ensure high standard of quality and performance.

Direct connection with Launcher

Invite guests or team members to instantly connect to the NovoConnect unit from their laptops using Launchers. A mix of all three models can be used to accommodate different guest and internal user needs in the meeting room. No matter the setting, Launchers work with all NovoConnect solutions.

Get the LauncherOne brochure

Check the LauncherOne portable App

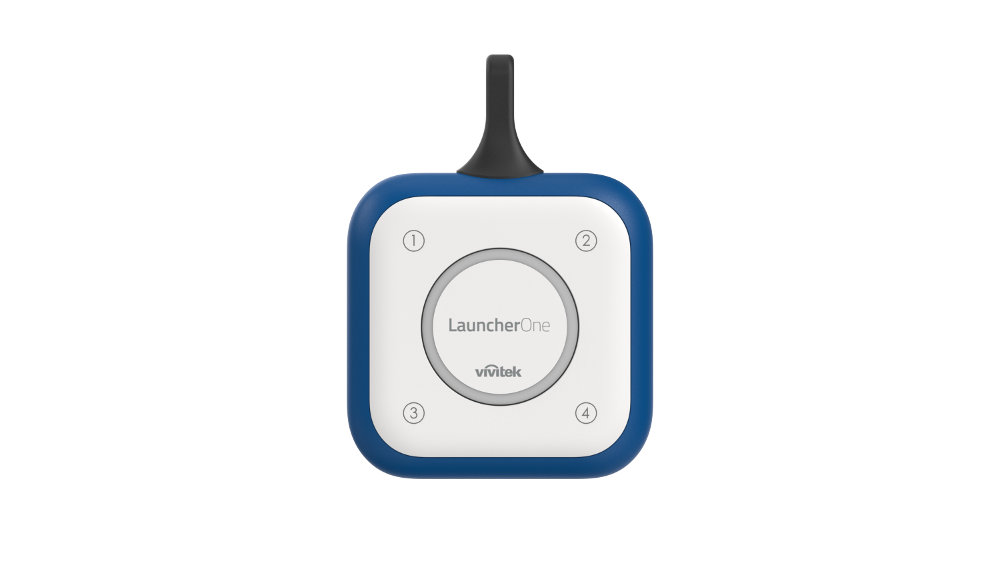

LauncherOne is designed to bring easy wireless connection for laptops with locked USB slots. LauncherOne offers hassle-free deployment and updates - click to go to the app download here.

Choose your App

Connect

Connect to share content and mirror any device on the main screen in the meeting.

Work

Work with up to 64 participants in the meeting, while 4 can share content on a split screen.

Share ideas and files instantly with all participants.

Explore more

For Corporate

	NC-X300	NovoPro	NC-X700	NC-X900
Model	NC-X300	NP2000	NC-X700	NC-X900
BYOD - Supported OS System
	Windows 7 / 8 / 10 (32 bits and 64 bits), macOS 10.7 and above, Ubuntu 18.04 and above, iOS 11.0 and above, Android 5.0 and above
	Screen Mirroring for iOS and Android
	Miracast not supported		Windows 10 Miracast
Desktop Streaming	up to WUXGA/1080p, 60 fps
Split Screen	Up to 2, side by side	Up to 4, in dynamic layout
Mirroring Resolution	Up to 1080p, 30 fps		Up to 4K-UHD, 30 fps
Output resolution	1080p (1920 x 1080), 720p (1280 x 720)		4K-UHD (3840 x 2160), 1080p (1920 x 1080), 720p (1280 x 720)
Collaboration	Windows 10 Extended Desktop function, Moderator function, AirNote for instant annotation from meeting participants, Novo Screennote for virtual whiteboard
Productivity	QR Code connection support, PIN connection function		Meeting ID, QR Code connection support, PIN connection function
Digital Signage Annocement Board	NA		NovoDS Digital Signage - Message and Annocement Board, intuitive drag-and-drop interface, flexible playlist creation, dynamic content from text, audio, photos and videos to webpages, Twitter, RSS, Google Calendar, Weather, and more.
Wireless Screen Duplication	NA		NT Live Reciever for wireless screen duplication	NT Live Sender and Reciever for wireless screen duplication
Security	Dual network WiFi & LAN, AES-256 encryption, Kensington lock
WiFi	"802.11ac, b/g/n, 2.4GHz & 5GHz 1T1R with 1 external antenna"	"802.11ac, b/g/n, 2.4GHz & 5GHz 2T2R with 2 internal antennae"	"802.11ac, b/g/n, 2.4GHz & 5GHz 2T2R with 2 external antenna"	"802.11ac, b/g/n, 2.4GHz & 5GHz, 2T2R with 2 external antenna Dual WiFi modules (one dedicated for Miracast)"
Output	HDMI-Out Audio-Out (3.5mm jack)	HDMI-Out	HDMI-Out Audio-Out (3.5mm jack)
Input	"USB Type A; microSD Slot; DC Jack Power-In"	"Ethernet RJ45; USB Type A; microSD Slot; microUSB Power-In"	"Ethernet RJ45; USB Type A x 1 USB Type C x 1; microSD Slot; RS-232 jack DC Jack Power-In"	"Ethernet RJ45 (PoE); USB Type A x 1 USB Type C x 1; microSD Slot; HDMI-In; Line-In 3.5mm mini jack; RS-232 jack DC Jack Power-In"
CPU	Quad-core ARM		Six-core ARM
Storage	8GB		16GB
Power	Input to AC adapter: AC 100-240V, 50/60Hz. Output from AC adapter: 5V/2A. Consumption: 10W		Input to AC adapter: AC 100-240V, 50/60Hz. Output from AC adapter: 5V/3A. Consumption: 15W
Product Dimensions (L x W x H) (L x W x H)	100 x 100 x 20 mm	120 x 75 x 16 mm	151 x 117 x 24.7 mm	195.8 x 139.8 x 28 mm
Weight	184 g	128 g	270 g	446 g
What’s Included	Main Unit, Antenna, HDMI Cable, USB Cable, Power Adapter, USB to Ethernet Adapter, Wall Mount KIT, Document KIT	Main Unit, HDMI Cable, USB Cable, Power Adapter, Remote Control with Batteries, Wall Mount KIT, Document KIT	Main Unit, 2x Antennae, HDMI Cable, USB Cable, Power Adapter, Remote Control with Batteries, Wall Mount KIT, Document KIT	Main Unit, 2x Antennae, HDMI Cable, USB Cable, Power Adapter, Remote Control with Batteries, Wall Mount KIT, Document KIT
Optional Accessory	LauncherPlus (USB Type A), LauncherPlus (USB Type C), LauncherOne (USB Type A)



Model		QL300EU	WQL-320EUV
Connector		USB-A	USB-C
Cross platform operation system support - Windows 7 above & mac 10.7 above		•	•
Built-in WiFi 802.11 b/g/n		•	•
Direct wireless mirroring to the main unit		•	•
Usage without administrator privilege		•	•
Wireless interactivity and touch support		•	•
Compatible with locked USB slots		NA	NA
Data security with AES-256 encryption		•	•
Zero network tracfic impact		•	•
LauncherBase optional accessory		•	•
Compatible main unit	NovoEnterprise	•	•
	NovoPro	•	•
	NovoCast	NA	NA
	NovoTouch LK6530i	•	•
	NovoTouch LK7530i	•	•
	NovoTouch LK8630i	•	•
	NovoTouch LK9810i*	•	•

For Education

	NovoCast	NovoPro
Model	NC1000	NP2000
BYOD - Supported OS System
	Windows 7 / 8 / 10 (32 bits and 64 bits), macOS 10.7 and above, iOS 11.0 and above, Android 5.0 and above	Windows 7 / 8 / 10 (32 bits and 64 bits), macOS 10.7 and above, Ubuntu 18.04 and above, iOS 11.0 and above, Android 5.0 and above
	Screen Mirroring for iOS and Android
	Miracast not supported
Split Screen	Up to 2, side by side	Up to 4, in dynamic layout
Mirroring Resolution	Up to 1080p, 30 fps
Output resolution	1080p (1920 x 1080), 720p (1280 x 720)
Collaboration	Windows 10 Extended Desktop function, Moderator function, Education Mode Preview function, AirNote, Novo Screennote for virtual whiteboard
Productivity	QR Code connection support, PIN connection function
Digital Signage Annocement Board	NA
Wireless Screen Duplication	NA
Security	Dual network WiFi & LAN, AES-256 encryption, Kensington lock
WiFi	802.11ac, b/g/n, 2.4GHz & 5GHz 1T1R with 1 external antenna	802.11ac, b/g/n, 2.4GHz & 5GHz 2T2R with 2 internal antennae
Output	HDMI-Out Audio-Out (3.5mm jack)	HDMI-Out
Input	USB Type A; microSD Slot; DC Jack Power-In	Ethernet RJ45; USB Type A; microSD Slot; microUSB Power-In
CPU	Quad-core ARM
Storage	8GB
Power	"Input to AC adapter: AC 100-240V, 50/60Hz. Output from AC adapter: 5V/2A. Consumption: 10W"
Product Dimensions (L x W x H) (L x W x H)	100 x 100 x 20 mm	120 x 75 x 16 mm
Weight	184 g	128 g
What’s Included	Main Unit, Antenna, HDMI Cable, USB Cable, Power Adapter, USB to Ethernet Adapter, Wall Mount KIT, Document KIT	Main Unit, HDMI Cable, USB Cable, Power Adapter, Remote Control with Batteries, Wall Mount KIT, Document KIT
Optional Accessory	NA	LauncherPlus (USB Type A), LauncherPlus (USB Type C), LauncherOne (USB Type A)

NC-X900

The NC-X900 is Vivitek’s most advanced Wireless Collaboration Add-On device featuring Miracast quality video, Digital Signage and highly secured network performance. Its advanced functionalities include wireless screen-out two-way duplication (NT sender and receiver), dual-monitor output and dual WiFi connection - one dedicated to Miracast and one for a regular WiFi. This solution is dedicated for the most demanding users.

Fully dedicated Miracast for wireless mirroring
A built-in wireless channel, dedicated specifically for Windows 10 Miracast, takes care of all possible latency issues you might experience on your personal laptop while streaming multimedia content.
Multiple display wireless mirroring
Extend wireless mirroring to multiple screens simultaneously. Enhance interaction and enjoy remote annotation when connected to a touch screen. Multiply your digital signage capabilities..
Real-time wireless screen duplication
Take advantage of real-time wireless screen-out duplication to other NovoConnect devices connected to the hub with NT LiveScreen feature.

Easy integration with video conferencing system
Fulfilling meeting and conference needs, the NC-X900 provides an easy and effective solution to connect and integrate into your video conferencing system.
Power over Ethernet support
It’s simple and convenient to connect IP devices. You don’t need to worry about having a power outlet nearby every endpoint. Refrain from additional electrical infrastructure and benefit from cost-effective cabling. Reduce installation costs and lower energy consumption!

NC-X700

With state-of-the-art features, such as Miracast quality video, Digital Signage and highly secure network performance, the NC-X700 is Vivitek’s Wireless Collaboration Add-On device with remarkable 4K video streaming and world-class integration capabilities.

Wireless Collaborationn & Digital Signage integrated
It provides a seamless switch between Wireless Collaboration and Digital Signage functionalities for any type of visual communication - be it a meeting, digital signage or both at the same time. It will wow you with its convenience and ease of use!
Supports 4K-UHD display resolution
Make a real visual impact with a 4K resolution image and engage your audience with great image quality. Deliver vivid, sharp content to promote services, boost sales and share any public information.

Screen mirroring support
Fully supports Miracast® for Windows 10, iOS mirroring and Google Cast, enabling quick and simple screen mirroring and content streaming from any laptop, tablet and smartphone devices.
Wireless screen-out duplication one-way (NT receiver)
Ability to receive NT LiveScreen data for display duplication in real-time.

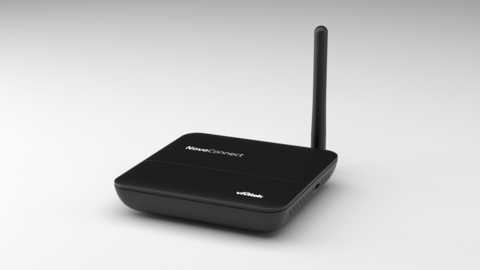

NC-X300

Ready to use straight out of the box, easy to integrate into any existing display infrastructure.
The NC-X300 is designed for small and medium enterprises and it perfectly fits business collaboration needs. With the NC-X300 you will enhance your visual interaction by showing your screen on a large format display.

Dual Split-View
Increase productivity and show two screens simultaneously, side by side. Enjoy flawless display performance with easy screen and file sharing features, extended desktop and smooth video streaming - all in real-time, smooth and wireless.

Intuitive NovoConnect App and Management Software
Establish a connection and seamlessly integrate any device with the NovoConnect NC-X300. Just download the software and install it on your computer or mobile device. Once installed, you can share your content to a big screen and contribute to the discussion - it’s that simple. It’s free of charge with no hidden costs or license fees.

NovoEnterprise is the supreme choice for SME and corporate meeting rooms. NovoEnterprise guarantees optimal connection performance. This ensures optimal standalone WiFi performance, even when demand on the available bandwidth is high. High quality transmission can stream video from your mobile device at up to 60 fps 1080p.

BYOD and wireless content sharing to the big screen
Enhance your meeting by sharing up to 4 screens simultaneously, while 64 participants can be connected to switch instantly
NovoEnterprise offers enhanced WiFi standalone operation with external Antenna, which provides direct wireless ad hoc connection for guests. This is especially handy for environments where there is no guest WiFi available – for example if the company only provides employee WiFi in their office and the guest has no internet access in that office

High-performance connectivity is assured thanks to NovoEnterprise’s 802.11ac WiFi and its 2T2R (2 transmitters and 2 receivers), which deliver optimal wireless performance.
Full 4K video streaming capacity
Can be remotely controlled and managed over the network, making it easy for IT Managers to monitor

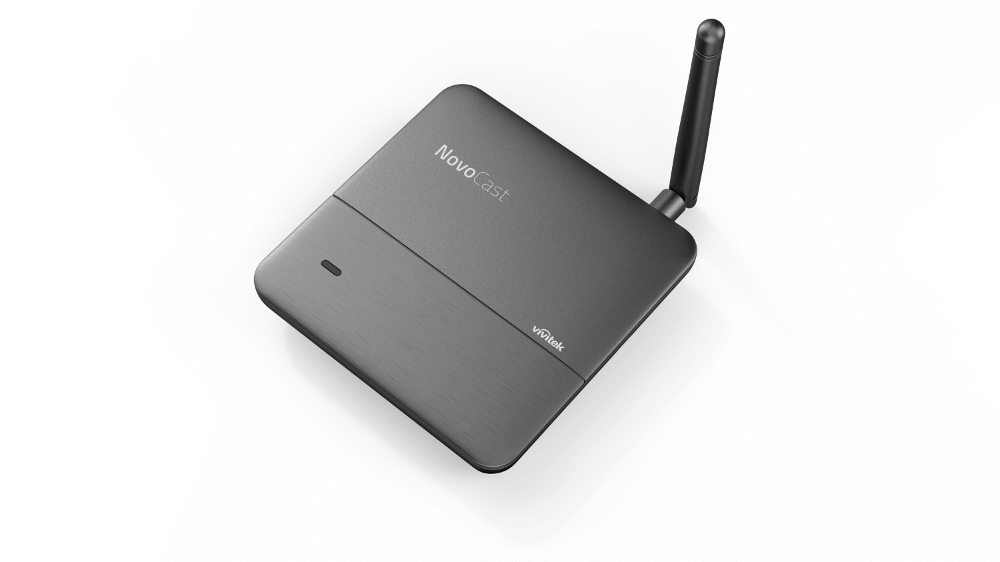

NovoCast

NovoCast brings wireless presentation to the classroom in order to improve participation, collaboration and sharing of ideas for up to 8 participants. This device is a perfect solution for all educational needs. It creates a common creative space, improves the floating exchange of thought and encourages constructive dialogue. We try to provide an opportunity for the educators to make their classes as engaging as possible and to involve the greatest amount of students.

BYOD and wireless content sharing to the big screen
Enhance your meeting by sharing up to 4 screens simultaneously, while 8 participants can be connected to switch instantly
Annotate with ease
Impressive quad-view display which simultaneously shows content from up to four participants, taking visual interaction in education to the higher level.

Fitting digital and dynamic expectations of educational environment
More engaging and memorable learning and teaching experience for all lesson participants
Instant wireless content sharing and collaboration to the main screen, without having to rely on the school network.

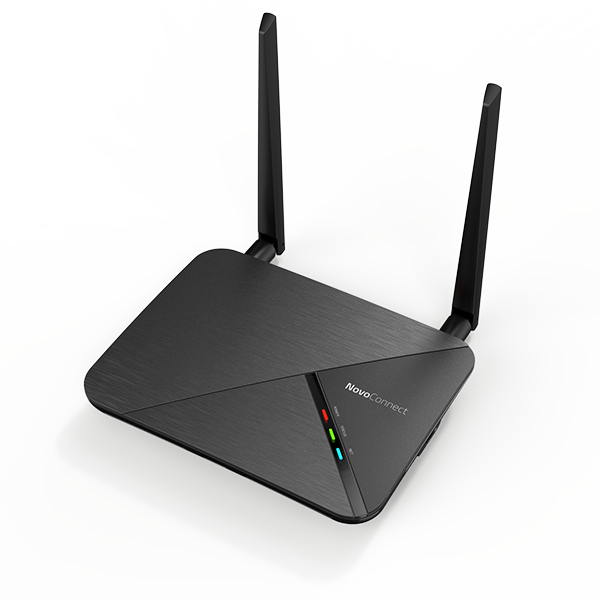

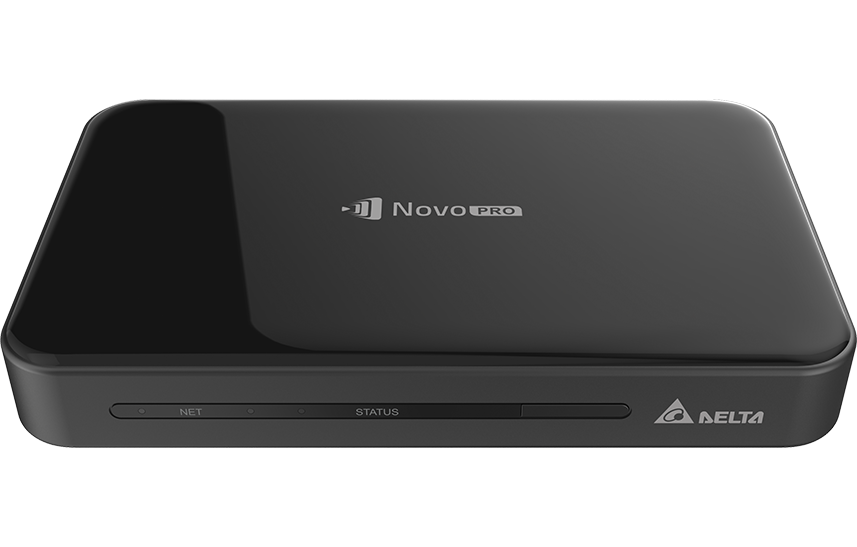

NP-2000 NovoPro

NovoPro is designed for the modern office environment, allowing for easy installation in multiple rooms in the office. Full integration in the existing network makes employee access easy, while a separate WiFi network for guest connections maintains data security.

BYOD and wireless content sharing to the big screen
Enhance your meeting by sharing up to 4 screens simultaneously, while 64 participants can be connected to switch instantly
Dual Network Support - NovoPro’s built-in Ethernet port and WiFi allow for dual network management so that both a wired and wireless connection infrastructure can be accomplished to accommodate, for example, both guest Wifi and corporate LAN setting.

The NovoPro can be simply deployed in any meeting room within the existing infrastructure, which eliminates the need to purchase any additional equipment.
Can be remotely controlled and managed over the network, making it easy for IT Managers to monitor.

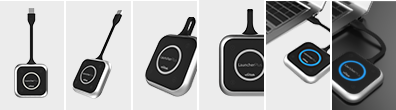

The LauncherPlus connects to any laptop, establishing a direct WiFi connection to any NovoConnect device. Intended for guests, LauncherPlus streamlines and secures the connection process, with zero impact on the existing network.

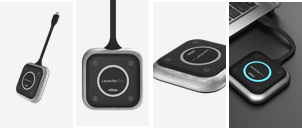

Offering the same features as the standard LauncherPlus, the LauncherPlus USB-C offers adapterfree compatibility for laptops not equipped with USB-A ports.

Check the LauncherOne portable App

LauncherOne is designed to bring easy wireless connection for laptops with locked USB slots. LauncherOne offers hassle-free deployment and updates - click to go to the app download here.
