DS234

Versatile Portable Projector with High Brightness

Vivitek D552 Front RightHero
The Vivitek DS234 is a 3,500 ANSI Lumens high SVGA digital projector from Vivitek. It is compact and lightweight at less than 2kg for easy portability, and it comes with a long lamp life up to 8,000 hours to keep easy of mind. , The DS234 features DLP® and BrilliantColor™ technologies to display distinct, vibrant images with its 20,000:1 sharp contrast ratio. The projector’s exceptional value is complemented by the numerous connectivities including HDMI.
Vivitek D552 Front
Vivitek D552 IO

Key features

  • DLP® technology with BrilliantColor™ for vibrant and rich picture quality
  • 3,500 ANSI lumens of brightness and 20,000:1 contrast ratio for clear, crisp and bright presentations
  • SVGA (800 x 600) native resolution scalable up to a maximum 1080p (1920 x 1080) resolution
  • Compact and lightweight at less than 2kg for easy portability
  • A long lamp life up to 8,000 hours for low Total Cost of Ownership (TCO)
  • HDMI input for high definition content with the same high quality
  • Audio ready with built-in 2 watt audio speaker, audio-in and audio out ports
  • 3D ready with 3D-Ready via DLP® Link™, IR, Blu-Ray 3D
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
Filter Free

HDMI

HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP
Native Resolution SVGA (800 x 600)
Brightness 3500 ANSI Lumens
Contrast Ratio 20,000:1
Max. Supported Resolution 1080p (1920 x1080) @60Hz
Native Aspect Ratio 4:3
Lamp Life and Type 4,000/6,000/8,000 Hours (Normal/Eco./Dynamic Eco. Mode), 203W/170W
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.55” DMD
Throw Ratio 1.97 - 2.17:1
Image Size (Diagonal) 27" - 290"
Projection Distance 1.2 - 11m
Projection Lens F = 2.51 - 2.69, f = 21.95 - 24.18mm
Zoom Ratio 1.1x
Offset (Based on Full Image Height) 115%
Keystone Correction Vertical +/-40°
Speakers 2W
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

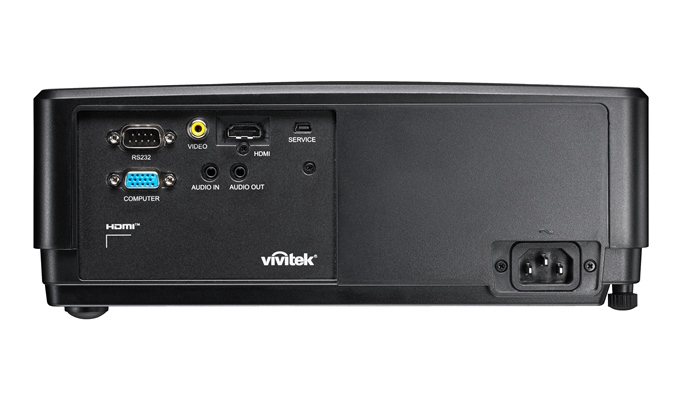

I/O Connection Ports VGA-In (15pin D-Sub), HDMI, Composite Video, Audio-In (Mini-Jack), Audio-Out (Mini-Jack), RS-232, USB miniB (Service)
Dimensions (W x D x H) 285 x 193.5 x 111.5mm
Weight 1.97 kg
Noise Level 30dB/28dB (Normal/Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 220W (Eco. Mode), 260W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video) Yes
Standard Accessories VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp , Remote Control , Carrying Case P/N
Vivitek D554 D555WH D557WH Front
Vivitek D554 D555WH D557WH Front
Vivitek D554 D555WH D557WH Front
Vivitek D554 D555WH D557WH Front

Replacement Lamp

LB04N D05A Lamp Photo 1 D510 D508 D511 D509 D513W VK508 VK509

Power: 190W
Part number: 5811118154-SVV

IR Remote Control

VivitekD3and D5 Series 4 076

Description: Remote Control Key Card 15 Keys
Part number: 5041827300

Vivitek DataSheet

Vivitek User manuals

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
