D55BA

Great Value High Brightness Ultra Mobile Projector

Vivitek D552 Front RightHero

From meeting room to presentations anywhere on the road

The D55BA SVGA digital projector with a contrast ratio of 15000:1 and 3,300 ANSI lumens of brightness will light up classrooms, meeting rooms and small boardrooms. Due to the integration of the Texas Instruments DLP BrilliantColor chip technology the D55BA shows crystal-clear pictures, with deep blacks and brilliant colors. Vivitek’s D55BA is the ideal device for projection requirements ranging from presentations to movies. The Dynamic Eco Mode power management system saves energy consumption and increases lamp life up to 6,000 hours.
Vivitek D552 Front
Vivitek D552 IO

Key features

  • Native SVGA resolution with display up to UXGA (1600 x 1200)@60Hz
  • DLP® BrilliantColor™ technologies for excellent color reproduction
  • High 15,000:1 contrast ratio ensures a crisp and sharp image
  • 5 segment colorwheel for improved color reproduction and automatic gain control
  • High efficiency lamp with up to 6,000 hours of lifetime (in eco mode)
  • Environmentally friendly with less than 0.5W of power in stand-by mode
  • Connectivity options including: VGA-In, VGA-Out, Audio-In/Out, and RS-232C
  • Source filtering function to save time locating device signal source
  • Keypad lock prevents accidental system adjustments
  • Closed caption and rapid on/off feature
  • Lightweight at only 2.3kg/5lbs
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
Native Resolution SVGA (800 x 600)
Brightness 3,300 ANSI Lumens
Contrast Ratio 15,000:1
Max. Resolution UXGA (1600 x 1200)@60Hz
Native Aspect Ratio 4:3
Lamp Life and Type 5,000/6,000 Hours (Normal/Eco Mode) 190W/160W (Normal/Eco Mode)
Display Type DLP® BrilliantColor™ Technology
Throw Ratio 1.92 - 2.14:1
Image Size (Diagonal) 23" - 256" (58 – 650cm)
Projection Distance 1 - 10m (3.28ft to 32.8ft)
Projection Lens F = 2.52 - 2.73, f = 21.8 - 24mm
Zoom Ratio 1.1x
Offset 128% +/-10%
Keystone Correction Vertical +/-40%, +/-40 Step
Speakers 2W (Mono)
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (x2), Audio-In (Mini-Jack), VGA-Out, Audio-Out (Mini-Jack), RS-232, Mini-USB (Service)
Dimensions (W x D x H) 274.6 x 212 x 100mm (10.8" x 8.3" x 3.9")
Weight 2.3kg (5lbs)
Noise Level 35dB/32dB (Normal/Eco Mode)
Power Supply AC 100-240V, 50/60Hz
3D Ready Yes (Supports DLP Link™)
Standard Accessories AC Power Cord, VGA Cable, Remote Control w/Batteries, Documentation Kit
Optional Accessories Replacement Lamp, Remote w/Laser Pointer
Vivitek D554 D555WH D557WH Front

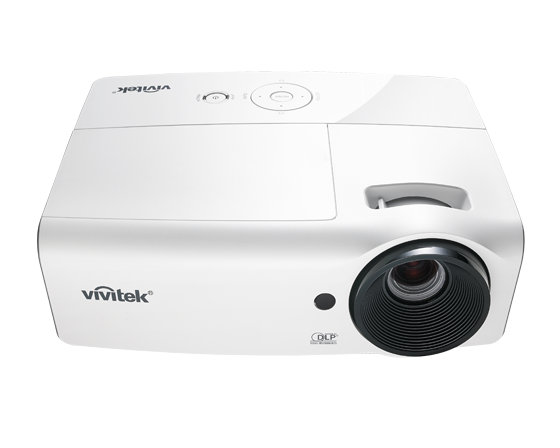

Vivitek D554 D555WH D557WH Front Top
Vivitek D554 D555WH D557WH Left Hero
Vivitek D554 D555WH D557WH Right Hero

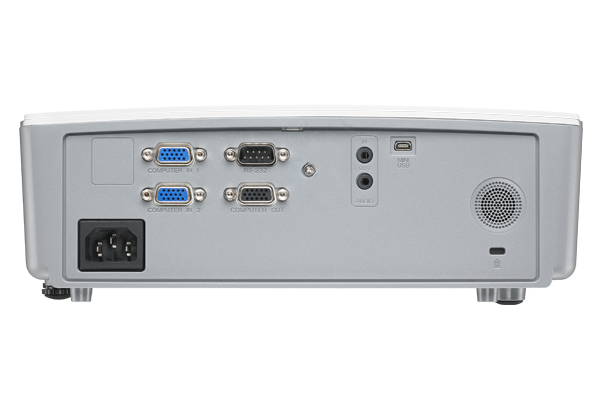

Vivitek D554 D555WH D557WH IO Back 1

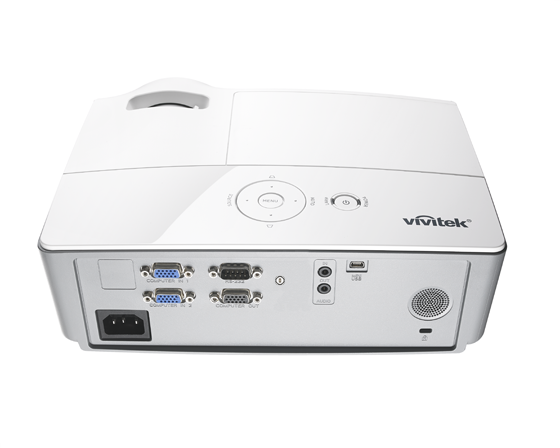

Vivitek D554 D555WH D557WH IO Back 2

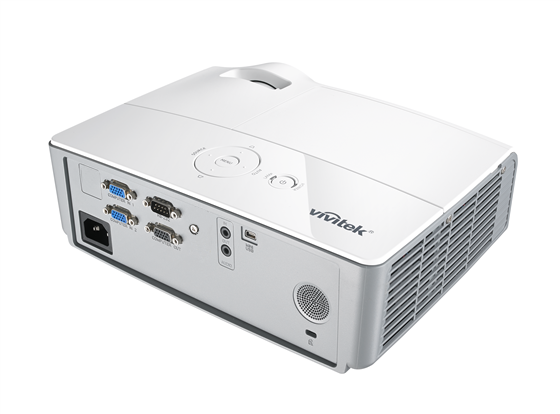

Vivitek D554 D555WH D557WH LeftBack Hero
Vivitek D554 D555WH D557WH Right Back Hero

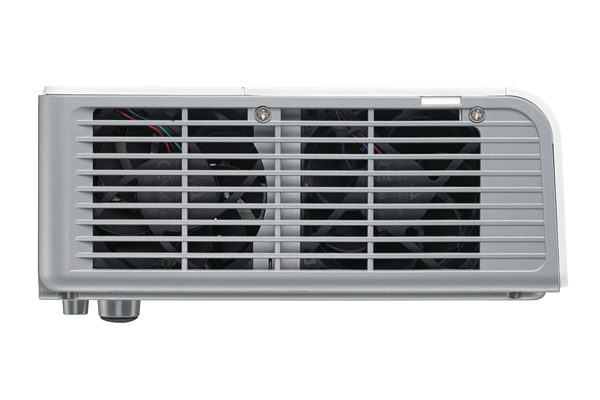

Vivitek D554 D555WH D557WH Left
Vivitek D554 D555WH D557WH Right

Replacement Lamp

LB04N D05A Lamp Photo 1 D510 D508 D511 D509 D513W VK508 VK509

Power: 190W
Part number: 5811118154-SVV

IR Remote Control

VivitekD3and D5 Series 4 076

Description: Remote Control Key Card 15 Keys
Part number: 5041827300

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
