Native Resolution |
XGA (1024 x 768) |
Brightness |
10000 ANSI Lumens |
Contrast Ratio |
3,000:1 |
Max. Resolution |
UXGA (1600 x 1200) @60Hz |
Native Aspect Ratio |
4:3 |
Lamp Life and Type |
1,500/2,000 Hours (Normal / Eco. Mode) On/Off 2,000/2,500 Hours(Normal/Eco. Mode) Continue On. 2 X 400W Lamp |
Display Type |
Single chip DLP® Technology by Texas Instruments |
Chip Size |
0.7” DMD |
Throw Ratio |
1.79 - 2.35:1 (Std. lens) |
Image Size (Diagonal) |
40" - 500" (Std lens) |
Projection Distance |
1.42 – 24.28m |

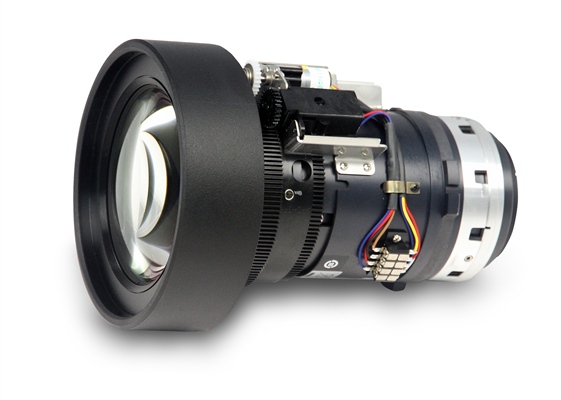

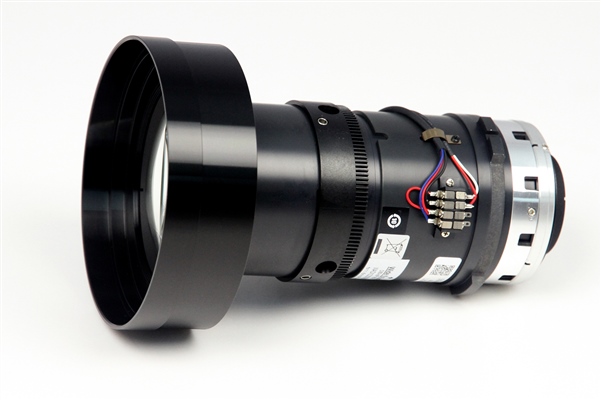

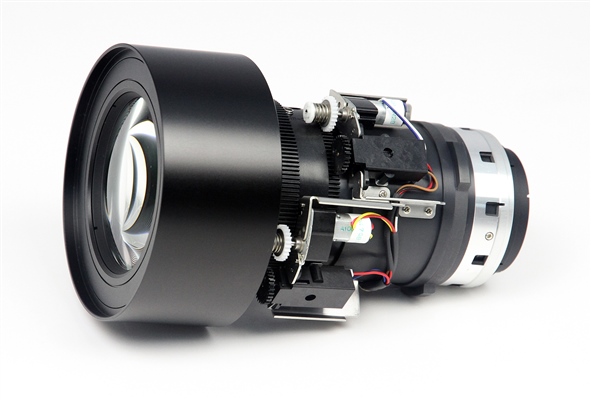

Projection Lens |
F = 1.7 - 1.9 f = 26 - 34mm |
Zoom Ratio |
1.3x (Std lens) |
Lens Shift Range |
Vertical: 0~50%, Horizontal: +/- 10% |
Offset |
Motorized Lens Shift |
Automatic Keystone Correction |
n/a |
Speakers |
n/a |
Video Compatibility |
SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L) |

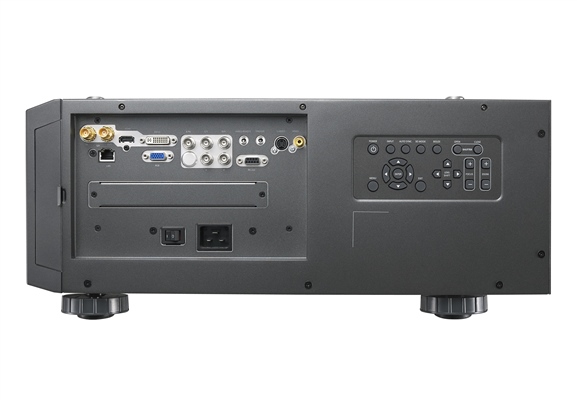

I/O Connection Ports |
VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, DVI-D, Component (5 BNC) (RGBHV), Component (YPbPr BNC x 3), S-Video, Composite Video, RJ45, IP Telnet Capable Over RJ-45, 12v Trigger, Trigger Port Type, RS-232, Remote Jack(wire remote) |
Dimensions (W x D x H) |
510 x 553 x 230 mm |
Weight |
25 kg |
Noise Level |
43dB/39dB (Normal/Eco. Mode,) |
Power |
Supply: AC 100-240V Consumption: 990W (Normal Mode) , 530W (Eco. Mode), <0.5W (Standby Mode) |
Spare Lamp P/N |
3797772800-SVK |

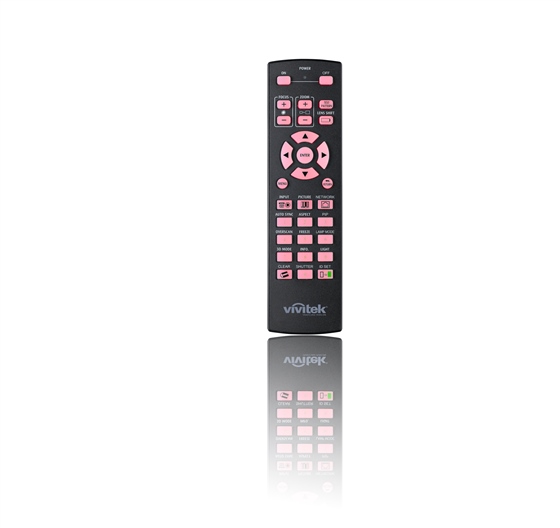

Remote Control P/N |
3797772800-SVK |
Standard Accessories |
VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), R/C Wire 3.5mm Jack, AC Power Cord |
Optional Accessories |
Spare Lamp P/N: 3797772800-SVK , Remote Control P/N: 3797772800-SVK |
Warranty |
Large Venue Warranty |
