Project movies with the finest detail in 1080p resolution

The Vivitek H1185HD is Full HD 3D directly via HDMI port and their native 1080p resolution allow users to benefit of the top 3D and 2D performance comfortably installed at home. The H1185HD delivers 2,500 ANSI lumens of brightness with a contrast ratio of 10000:1 giving an excellent level of black; the H1185HD is the perfect projector to entertain in a variety of moderate lighting environments. The model includes also the SRS WOW® audio sound technology to deliver a cinematic experience with deep and rich bass. Moreover a new generation lamp prolongs the lamp lifetime up to 5,000 hours in eco mode and its position on the top of the projector also facilitates its replacement.

Key features

Full high definition 1080p (1920x1080) resolution for the best quality, sharpness and clarity of video
Super bright at 2500 ANSI lumens for vibrant and dazzling images
DLP® DarkChip3™ and BrilliantColor™ technologies from Texas Instruments
ISF mode for day and night calibration
SRS WOW® significantly improves the playback quality of audio, delivering a dynamic 3D entertainment experience with deep, rich bass
High-efficiency lamp that last up to 5000 hours (in economy mode)
Host of connectivity options including HDMI v1.4b, VGA-in, S-video, component and composite
3D-ready via DLP® Link™ and BluRay 3D movie playback

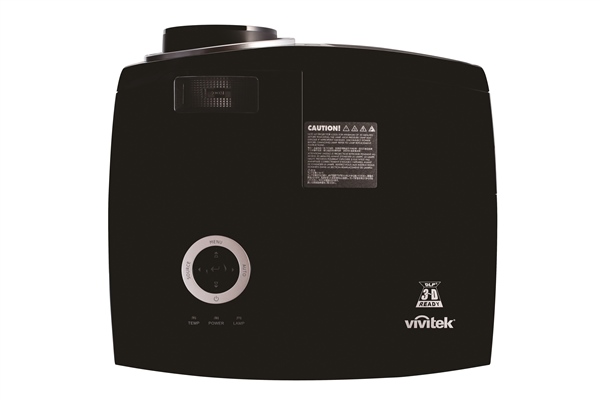

Top sided lamp cover for convenient lamp replacement

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.

ISF

Image science foundation calibration.

Native Resolution

1080p (1920 x 1080)

Brightness

2500 ANSI Lumens

Contrast Ratio

10000:1

Max. Resolution

WUXGA (1920 x 1200) @60Hz

Native Aspect Ratio

16:9

Lamp Life and Type

3,500/5,000 Hours (Normal/Eco Mode), 240W/190W,Osram

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.65” DMD

Throw Ratio

1.39-2.09:1

Image Size (Diagonal)

25.9"-324.9"

Projection Distance

1.2 - 10 m

Projection Lens

F#2.418 - 2.97, f = 20.7 - 31.05mm

Zoom Ratio

1.5x

Offset

130%

Speakers

10W(SRS Function)

Video Compatibility

SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

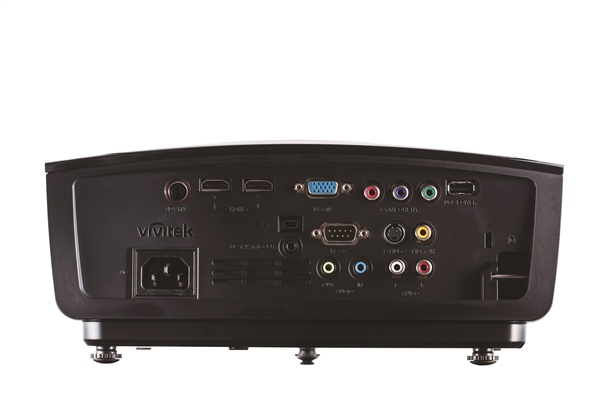

I/O Connection Ports

VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, Component (YPbPr RCA x 3), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), Audio-Out (Mini-Jack), 12v Trigger, Trigger Port Type, RS-232, 3D-Sync Out, USB type A for Display(Frame display) and JPG reader(Photo: Jpeg / Video: Mpeg4,H.264)

Dimensions (W x D x H)

285 x 261 x 121.8 mm

Weight

3,15 kg

Noise Level

35dB/32db (Normal /Eco. Mode)

Power

Supply: AC 100-240V, 50/60Hz Consumption: 290W (Normal Mode) 240W (Eco. Mode) <0.5W (Standby Mode)

3D Ready(DLP link, PC+Video)

Yes

Standard Accessories

VGA Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord

Optional Accessories

Spare Lamp, Remote Control

Warranty

Standard Warranty

Vivitek DataSheet

Vivitek H1185HD Datasheet German

Vivitek Projector Distance Calculator v2.0

A =

4:3 16:10 16:9

cm inch

Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
