H1180HD

An Outstanding 3D Home Cinema Projector

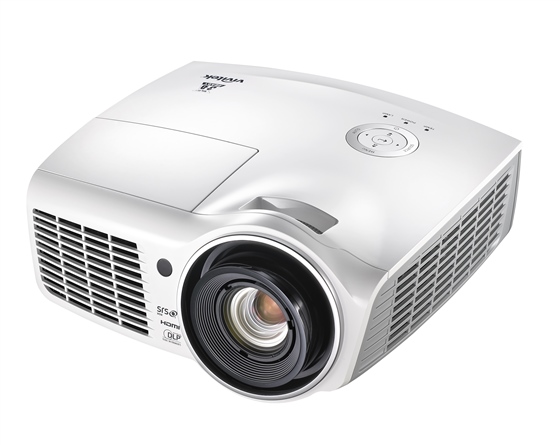

Vivitek H1180HD RightHero HiRes

Amazing 3D viewing experience

The Vivitek H1180HD is Full HD 3D directly via HDMI port and their native 1080p resolution allow users to benefit of the top 3D and 2D performance comfortably installed at home. The H1180HD delivers 2,000 ANSI lumens of brightness with a contrast ratio of 10,000:1 giving an excellent level of black; the H1180HD is the perfect projector to entertain in a variety of moderate lighting environments. The model includes also the SRS WOW® audio sound technology to deliver a cinematic experience with deep and rich bass. . Moreover a new generation lamp prolongs the lamp lifetime up to 6,000 hours in eco mode and its position on the top of the projector also facilitates its replacement.
Vivitek H1180HD Front HiRes

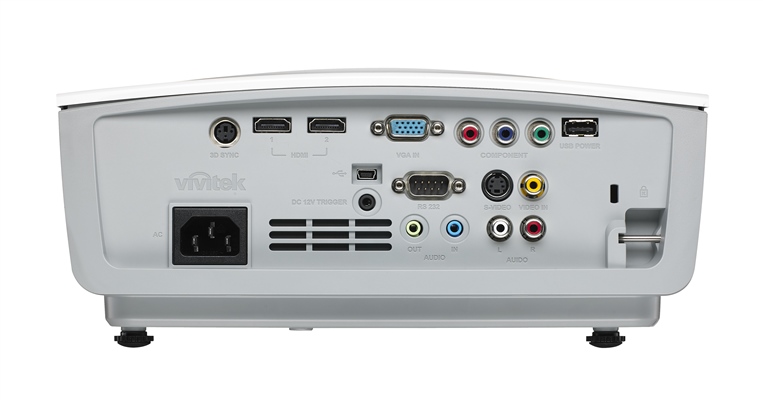

Vivitek H1180HD IO Ports HiRes

Key features

  • Full high definition 1080p (1920x1080) resolution for the best quality, sharpness and clarity of video
  • Super bright at 2000 ANSI lumens for vibrant and dazzling images
  • 10,000:1 contrast ratio for crisp and sharp text
  • DLP® DarkChip3™ and BrilliantColor™ technologies from Texas Instruments
  • SRS WOW® significantly improves the playback quality of audio, delivering a deep, rich bass sound
  • High-efficiency lamp that last up to 6000 hours (in economy mode)
  • Host of connectivity options including HDMI v1.4b, VGA-in, S-video, component and composite
  • 3D-ready via DLP® Link™ and BluRay 3D movie playback
  • Top sided lamp cover for convenient lamp replacement
DLP® Technology

DLP® Technology

DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready

3D Ready

A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDTV

HDTV

High-Definition Television. Generic term that indicates a higher resolution format than previous standards. At present, denotes anything higher than a 480p signal. Most common formats are 720p, 1080i and 1080p.

Related Products

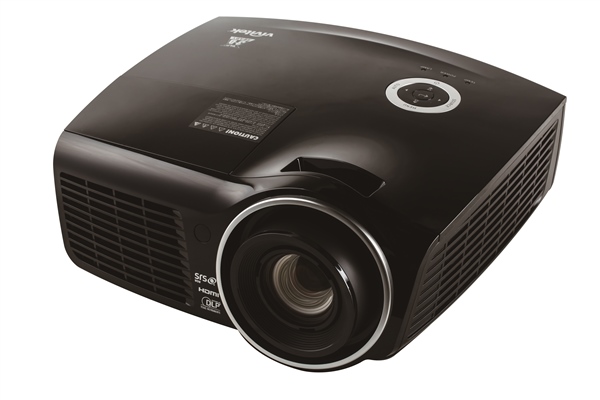

Vivitek H1185HD Right Hero

H1185HD

1080p (1920 x 1080)

2500 ANSI Lumens

C.R.: 15000:1

T.R.: 1.39-2.09:1

3,15 kg

View details
Native Resolution 1080p (1920 x 1080)
Brightness 2000 ANSI Lumens
Contrast Ratio 10,000:1
Max. Resolution WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio 16:9
Lamp Life and Type 4,500/6,000 Hours (Normal/Eco Mode), 190W/160W, Philips
Display Type Single chip DLP® Technology by Texas Instruments
Chip Size 0.65” DMD
Throw Ratio 1.39-2.09:1
Image Size (Diagonal) 25.9"-324.9"
Projection Distance 1.2 - 10 m
Projection Lens F#2.418 - 2.97, f = 20.7 - 31.05mm
Zoom Ratio 1.5x
Offset 130%
Speakers 10W (SRS function)
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports VGA-In (15pin D-Sub), HDMI Number of Ports, HDMI Version, Component (YPbPr RCA x 3), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack), Audio-Out (Mini-Jack), 12v Trigger, Trigger Port Type, RS-232, 3D-Sync Out, USB type A for Display(Frame display) and JPG reader(Photo: Jpeg / Video: Mpeg4,H.264)
Dimensions (W x D x H) 285 x 261 x 121.8 mm
Weight 3,15 kg
Noise Level 33dB/29db (Normal /Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 240W (Normal Mode) 200W (Eco. Mode) <0.5W (Standby Mode)
3D Ready(DLP link, PC+Video) Yes
Standard Accessories VGA Cable, User Manual (CD), Lens Cap, Carrying Case, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
Optional Accessories Spare Lamp, Remote Control
Warranty Standard Warranty

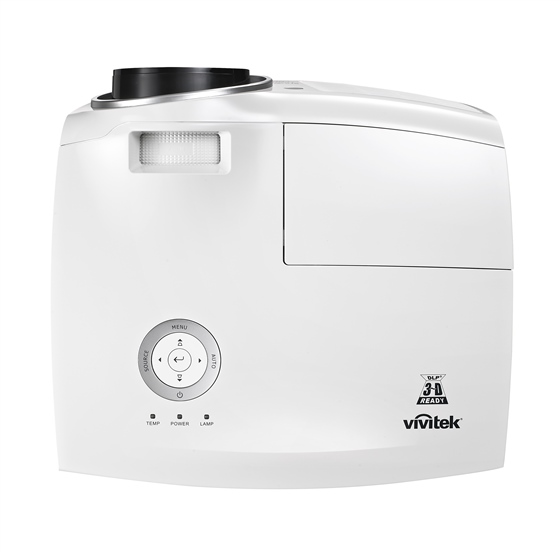

Vivitek H1180HD Top HiRes
Vivitek H1180HD RightHero HiRes

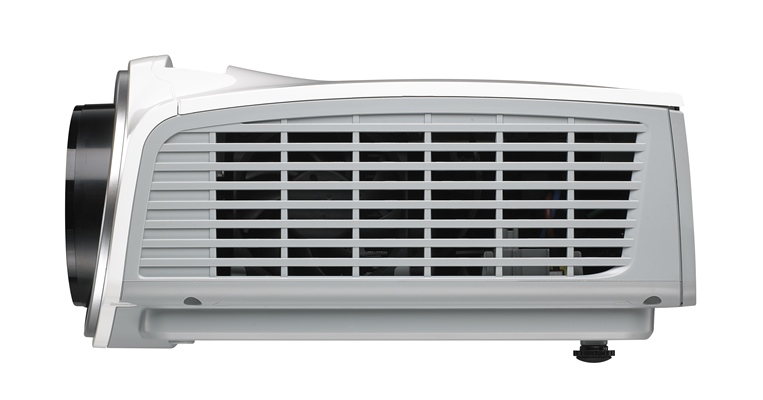

Vivitek H1180HD Right HiRes

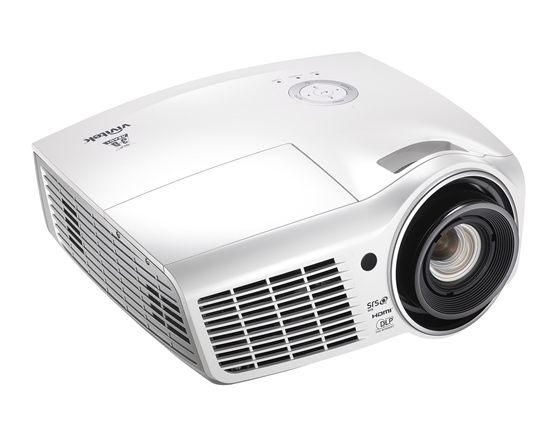

Vivitek H1180HD LeftHero HiRes

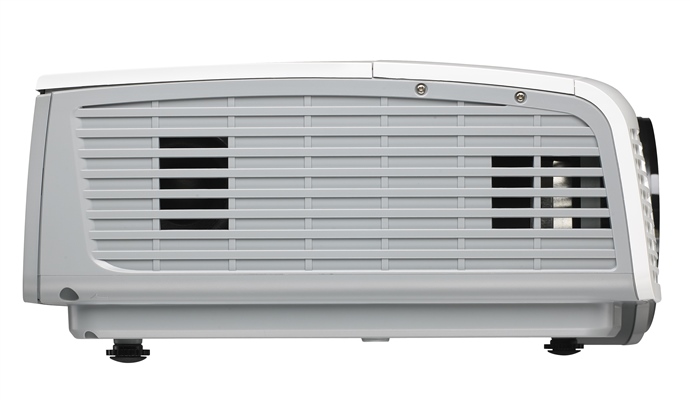

Vivitek H1180HD Left HiRes
Vivitek H1180HD IO Ports HiRes

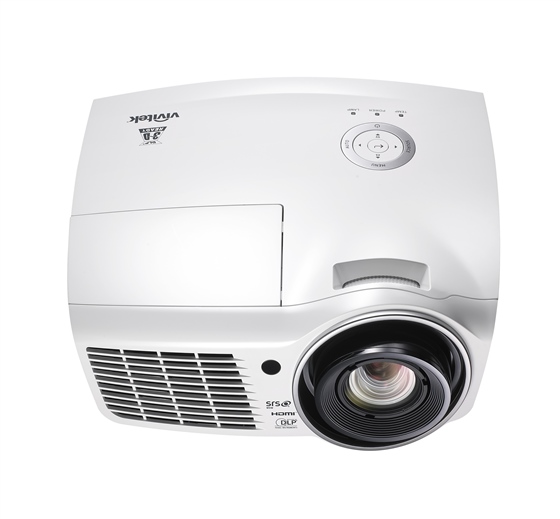

Vivitek H1180HD FrontTop HiRes

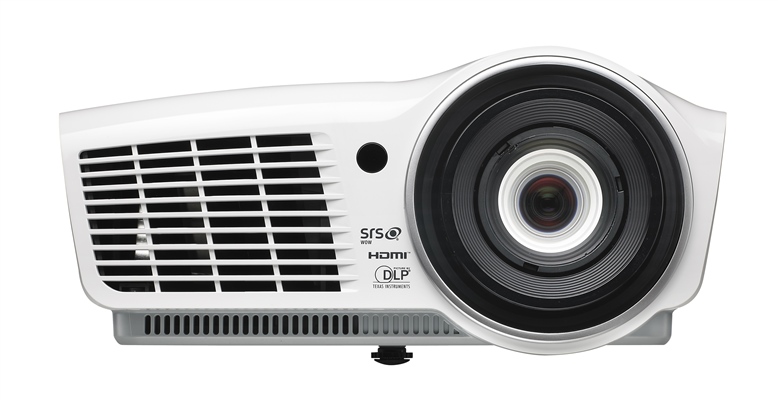

Vivitek H1180HD Front HiRes

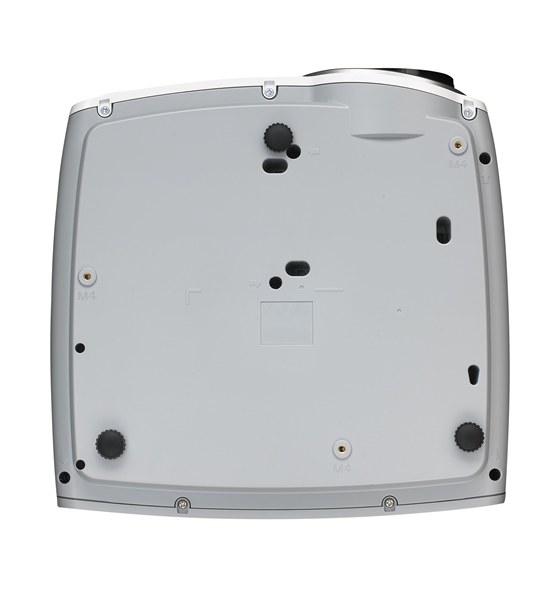

Vivitek H1180HD Bottom HiRes

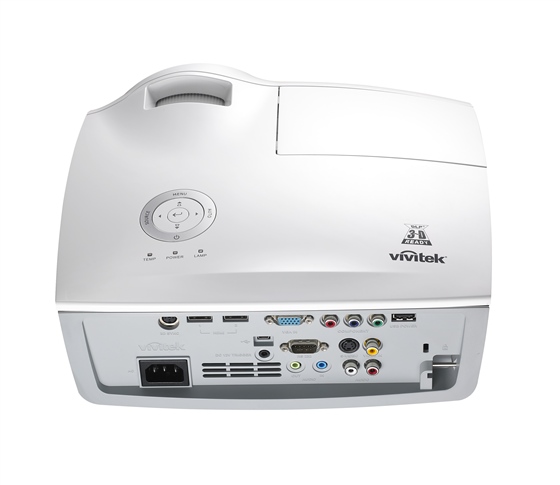

Vivitek H1180HD BackTop HiRes

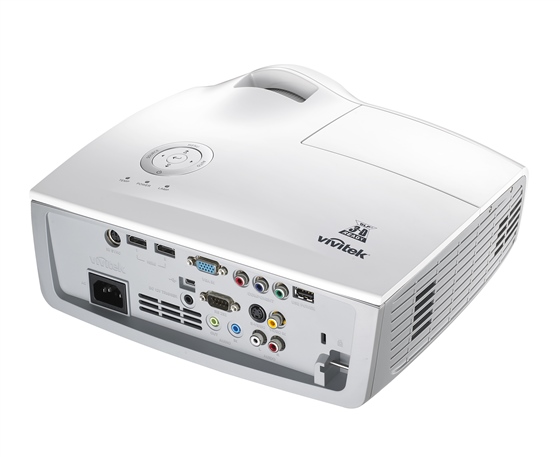

Vivitek H1180HD BackRightHero HiRes

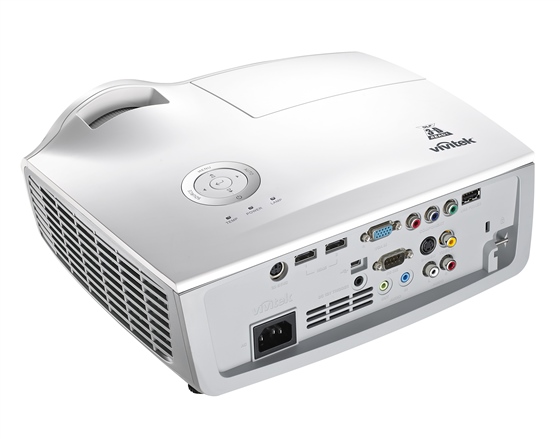

Vivitek H1180HD BackLeftHero HiRes

Replacement Lamp

D851 D1185

Power: 190 W
Part number: 5811117175-SVV

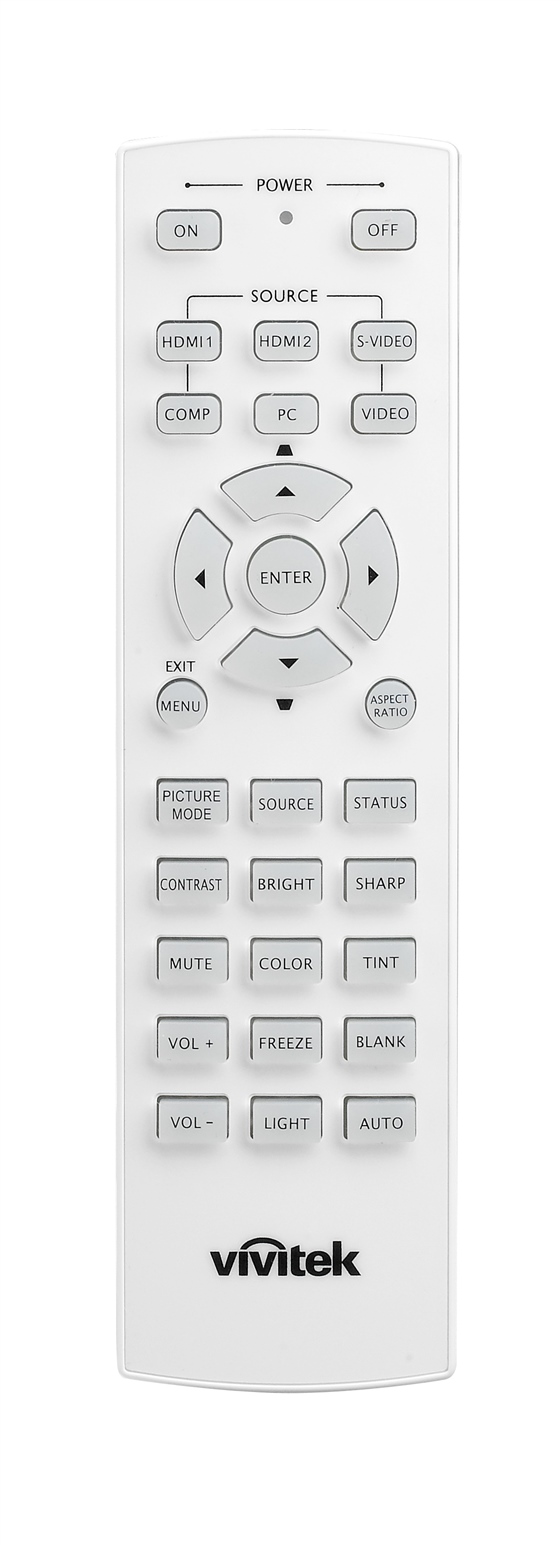

IR Remote Control

VivitekH1080 H5080 Sieries

Description: Remote Control HC 30 Keys
Part number: 5041819100

Vivitek Projector Distance Calculator v2.0



>




A
A =
Note on using the projector distance planning calculator and tips for projector installation:
Calculator accuracy +/-5%. The calculator is designed to help you plan your installation and find the right projector. It is not designed to provide exact dimensions. When calculating the throw distance, bear in mind that the distance is measured from the front of the lens to the projection surface, except for Ultra Short Throw projectors with a mirror system. Where possible, attempt to position the projector in the middle of the zoom range , which is where the optics is optimized for. Try to avoid the extreme outer boundaries as the projector lenses has variance and performance tolerances that could make the screen not being filled, or the image being larger than the screen, caused by small variances in the optical systems. If you need to be at the extreme outer boundaries, we recommend that you order the projector and test the actual distance in your environment before fixing any mounting parts to the wall or ceiling.
